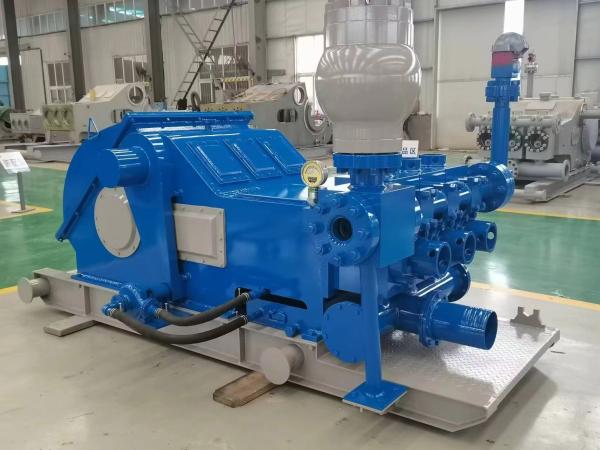

API 3NB-350 Triplex Mud Pump In Drilling Rig 8058kg

Product Categories

Shandong Xinwei Drilling Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: API 3NB350 Triplex Mud Pump In Drilling Rig 8058kg
Brand: XINWEI
Price: 260000 USD

Brand Name : XINWEI

Model Number : 3NB-350

Place of Origin : SHANDONGQINGZHOU

MOQ : 1

Price : 260000

Payment Terms : MoneyGram, Western Union

Packaging Details : 3600*2080*2015

Contact Now

3NB-350 Triplex Mud Pump

型号Model		型式Type				输入功率 Input power			额定泵速 Rated pumpSpeed		冲程长度 Stroke length		齿轮传送比 Gear ratio		主动轮额定转速转/分 Drive Wheel Rated speed R/Min
3NB-350		三缸单作用 Triplex Single-Acting piston pump				275kw 350(hp)			130冲/分 Stroke/Min		180mm		130/29		582.8
吸入管径Dia.of Suction Manifold		排出管径Dia.of Discharge Manifold				外形尺寸(立方毫米) Overall size mm³					重量 Weight(kg)		不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight
190mm		101mm				3600×2080×2015					8058		7500
性能参数表
					缸套直径(Cylinder dia) mm
	泵速(冲/分) Pump Speed(Stroke/Min.)		Ф90				ф100			ф110	ф120	ф130		ф140		ф150	ф160
			理论排量(升/秒)Theoratic Displacement(L/S)(GPM)
130				7.44				9.18		11.11	13.23	15.52		18.00		20.67	23.51
120				6.87				8.48		10.26	12.21	14.33		16.62		19.08	21.7
110				6.29				7.77		9.40	11.19	13.13		15.23		17.49	19.90
100				5.72				7.07		8.55	10.17	11.94		13.85		15.90	18.09
泵压Pump pressure(Mpa)				31.0				25.0		20.8	17.5	14.9		12.8		11.2	9.8
机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.

Product Tags:

3NB-350 Triplex Mud Pump
